■ 基本信息
別名: | pMalc5X |
啟動子: | Tac |
復制子: | pBR322 |
終止子: | rrnB T1 terminator |
質粒分類: | 大腸桿菌載體；pMal系列表達質粒 |
質粒大小: | 5677bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 大腸桿菌BL21(DE3) |
培養條件: | 37℃，有氧，LB |
誘導方式: | IPTG或乳糖及其類似物 |
■ 質粒屬性
質粒宿主: | 大腸桿菌 |
質粒用途: | 蛋白表達 |
片段類型: | ORF |
片段物種: | 空載體 |
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
The vector pMAL-c5X is designed to produce maltose-binding protein (MBP) fusions, where the protein of interest can be cleaved from MBP with the specific protease Factor Xa . MBP fusions made with this vector are expressed cytoplasmically. The MBP has been engineered for tighter binding to amylose resin. A gene or open reading frame is inserted into a restriction site of the vector polylinker, in the same translational reading frame as the malE gene (encoding maltose-binding protein). The fusion protein thus produced can be purified by amylose affinity chromatography. The sequence coding for the four amino acids Ile-Glu-Gly-Arg is present just upstream of the XmnI site. This allows the protein of interest to be cleaved from maltose-binding protein with the specific protease Factor Xa. Fragments inserted in the XmnI site (cleaves GAAGG↓ATTTC) will produce a fusion protein that, after Factor Xa cleavage, contains no vector-derived residues on the protein of interest.

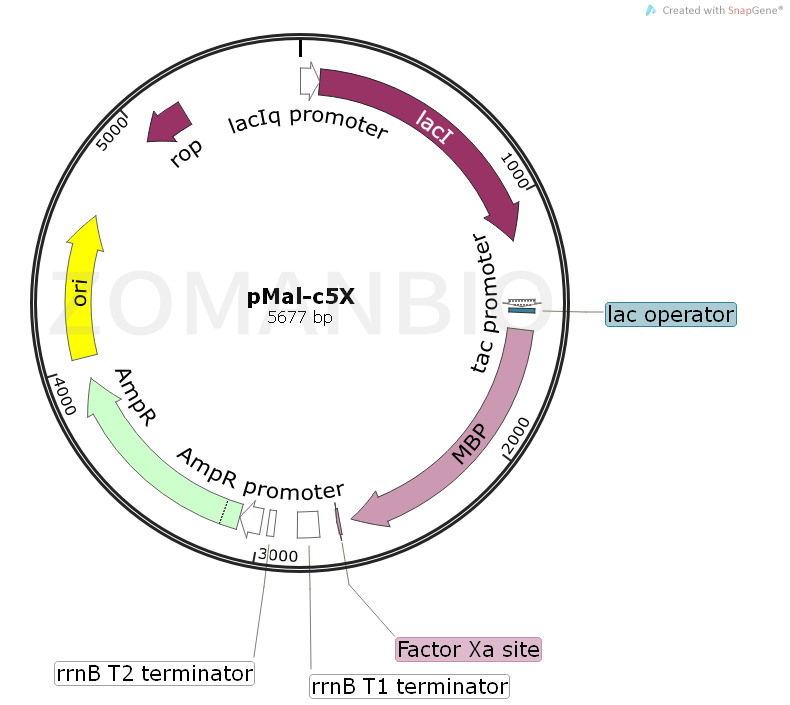

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK1577 pMal-c5X大腸表達質粒.txt
