■ 基本信息
啟動子: | gpdA |
復制子: | pUC |
終止子: | trpC terminator |
質粒分類: | 絲狀真菌 |
質粒大小: | 5518bp |
質粒標簽: | 無 |
原核抗性: | Amp |
篩選標記: | Bar |
克隆菌株: | DH5α |
培養條件: | 37℃ |
表達宿主: | 絲狀真菌 |
誘導方式: | 無需誘導 |
5'測序引物: | 根據全序列設計 |
3'測序引物: | 根據全序列設計 |
■ 質粒屬性
質粒宿主: | 絲狀真菌 |
質粒用途: | 蛋白表達 |
片段類型: | 基因CDS
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pBARGPE1是一個絲狀真菌-大腸桿菌穿梭表達載體，利用gpdA promoter可啟動外源目的基因的表達，轉化至絲狀真菌中可用草胺膦Bar篩選。The plasmid carries a polylinker with 5 or 6 unique restriction sites flanked on the right by a fungal promoter directing transcription into the polylinker and flanked on the left by the trpC terminator. The plasmid carry a bar selectable marker and a lox-NotI-lox site for insertion into lambda and for site-specific recombination between lox sites.
pBARGPE1質粒的參考文獻：Infection cycle of maize stalk rot and ear rot caused by Fusarium verticillioides.

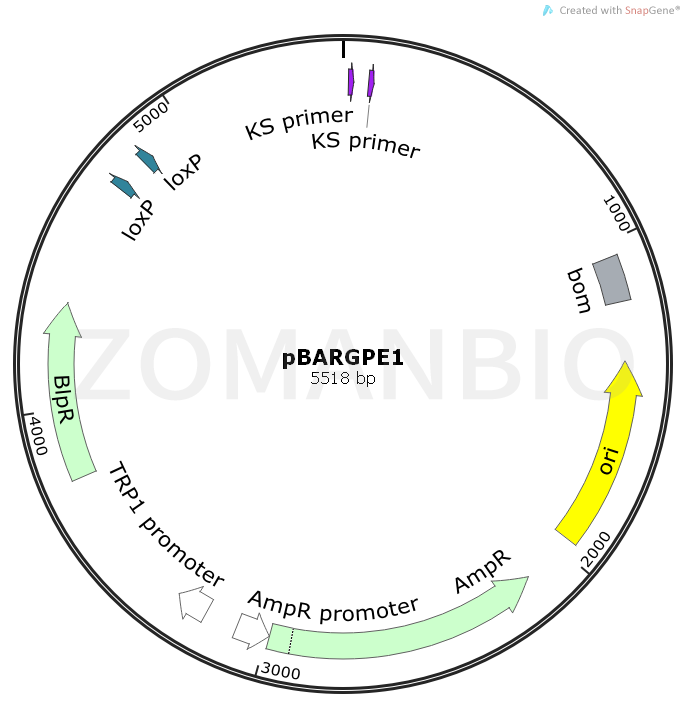

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK1063pBARGPE1真菌表達質粒.txt
質粒只保證關鍵序列正確，不保證表達效果。
